CLF OEM LiFePO4 EV Lithium Battery Pack 96V 120V 360V 100ah 200Ah Baterai tegangan tinggi untuk truk kendaraan berkecepatan rendah
Kontak Person : Rosa Liu
Nomor telepon : +86 18975107916
ApaAPP : +8618975107916
| Kuantitas min Order : | 2 Satuan | Harga : | dapat dinegosiasikan |
|---|---|---|---|
| Kemasan rincian : | Kasing kayu dan karton | Waktu pengiriman : | 7-15 hari kerja |
| Syarat-syarat pembayaran : | T/T | Menyediakan kemampuan : | 100.000 unit per bulan |
| Tempat asal: | Hunan, Cina | Nama merek: | Chalong Fly |
|---|---|---|---|
| Sertifikasi: | CE,ROHS,FCC,IEC62133,MSDS,UN38.3, UL, etc | Nomor model: | CLFLE218 |
|
Informasi Detail |
|||
| Jenis Baterai:: | baterai lifepo4 | Voltase:: | 51.2V |
|---|---|---|---|
| Kapasitas:: | 105Ah | Ukuran:: | disesuaikan |
| OEM/ODM:: | Ya | Paket Transportasi:: | Kotak Busa & Kayu Lapis |
| Standar Tahan Air:: | IP67 | Kode HS:: | 8507600090 |
| Fitur:: | hemat biaya, pengiriman cepat, struktur Stabil | Aplikasi:: | PERAHU, Kereta Golf, kendaraan listrik, Mobil Golf |
Deskripsi Produk
| Item | Specification | Note |
|---|---|---|

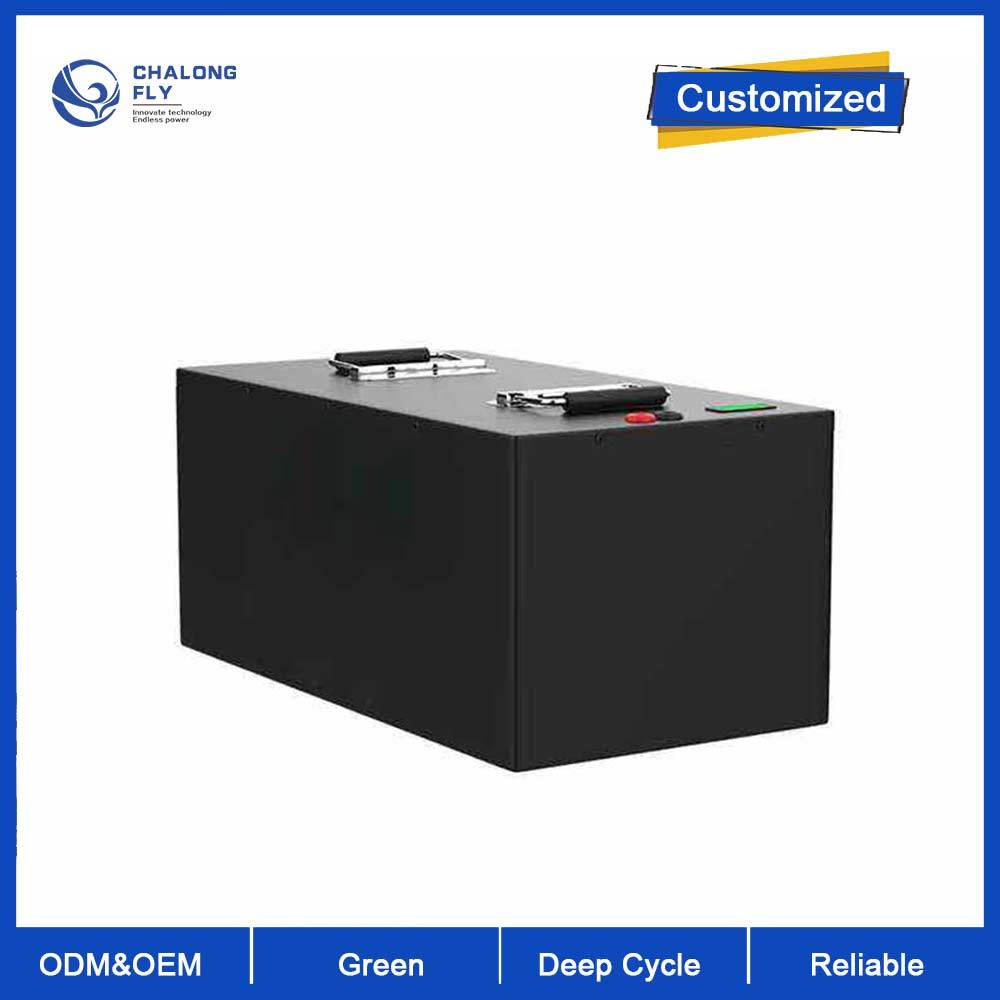

| Battery Model | 60V 58Ah | Heavy load special model |
| Battery Type | LiFePO4 (Lithium Iron Phosphate) | Safer and more durable |
| Configuration | 20S Series Connection | Stable voltage output |
| Rated Voltage | 60V DC | Matching 60V electric tricycles |
| Rated Capacity | 58Ah (0.2C, 25℃) | True capacity, no false standard |
| Charging Voltage | 67.5V DC | Use specialized charger only |
| Discharge Cut-off Voltage | 40V DC | Protect battery from over-discharge |
| Recommended Charging Current | 5A~15A | Fast charging without damage |
| Continuous Discharge Current | 50A~80A | No voltage drop under heavy load |
| Peak Discharge Current | 150A (10s Max) | Adapt to instant heavy load |
| Operating Temperature Range | Charging: 0℃~45℃; Discharging: -20℃~60℃ | Stable in extreme temperatures |
| Storage Temperature Range | -20℃~50℃ (30%~60% SOC) | Extend battery service life |
| Cycle Life | ≥2000 Cycles (80% Capacity Retention) | Usable for 5-8 years |
| Dimensions (L*W*H) | 390mm*180mm*210mm (Customizable) | Fit most tricycle models |
| Net Weight | About 15.5kg | 60% lighter than lead-acid batteries |
| Connector Type | Customizable (Anderson/XT60/XT90/Square Hole) | Match different vehicle interfaces |
| Protection Function | Overcharge, Over-discharge, Over-current, Short-circuit, Over-temperature, Cell Balancing | Comprehensive safety protection |
| Application | Electric Cargo Tricycle, Express Delivery Tricycle, Home Electric Tricycle, Elderly Mobility Tricycle, Street Vendor Cart, Engineering/Agri Tricycle | Multi-scenario adaptation |
Suitable for a variety of scenarios and models, whether it is cargo tricycles for pulling goods, express delivery tricycles for distribution, home commuting, or street vendor carts for power supply, it can meet the needs. It has excellent high and low temperature adaptation performance, and can still discharge normally in low temperature environment in northern winter, with only 10%-20% normal capacity attenuation; it works stably in high temperature weather in southern China, without lag or power failure due to overheating, and adapts to the use needs of different regions and scenarios all day long. It also supports customization of size, interface and capacity to meet the personalized needs of special models.
Electric cargo tricycles, express delivery tricycles, home electric tricycles, elderly mobility tricycles, street vendor carts, engineering/agri tricycles and all other electric tricycles with 60V voltage. Customizable size to fit special models.
Yes, as long as your old battery is 60V voltage and the installation space matches the size of this product (customizable size), it can be directly replaced without modifying the vehicle wiring.
It is recommended to use a 67.5V 5-10A special charger for LiFePO4 batteries, and it takes about 4-9 hours to fully charge (the specific time depends on the charger current); it is forbidden to use lead-acid battery chargers to avoid damaging the battery.
This product has a 2-year warranty. Within the warranty period, if there is non-man-made quality problem (such as cell damage, BMS failure, etc.), it can be repaired or replaced for free; man-made damage (such as falling, soaking, private disassembly, etc.) is not within the warranty scope.
When not in use for a long time, first charge the battery to 30%-60% power, place it in a cool, dry and ventilated environment, avoid exposure to the sun, rain and soaking; recharge it every 1-2 months to prevent battery damage due to power loss.
There will be a slight impact. LiFePO4 battery can still discharge normally at -20℃, but the capacity will decrease by 10%-20% in low temperature environment, which is a normal phenomenon; it is recommended to charge indoors in winter to avoid the battery being in low temperature environment for a long time.
